Flat Wire Panel Deep Drawing Basket

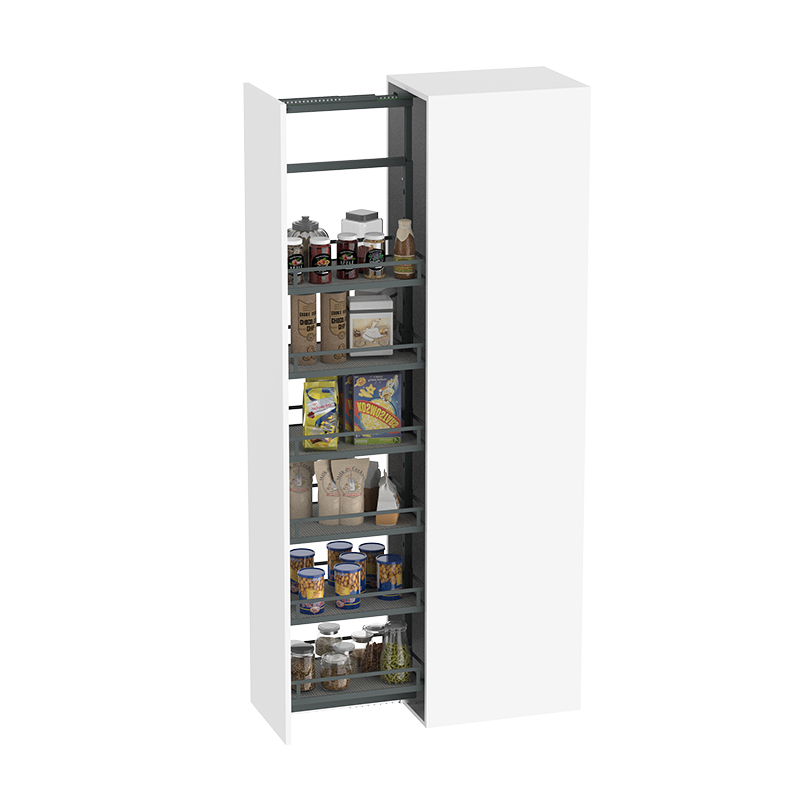

Suitable for narrow spaces, extends upward to achieve better space utilization. Features a modular design for adjustable height and partitioning. The basket is constructed with thick flat steel edges and paired with 9mm thick MDF board for stability, preventing items from shaking and reducing noise. Equipped with EVA anti-slip pad for waterproof and stain-resistant properties.
  • Space Improve

  • 10 KG x 6

  • Quality Assurance

  • Smooth Movement

  • Surface Treatment

    Main frame powder coating
    Basket Powder coating / Chrome plated
  • OEM technical
    Support

  • Loading
    capacity 35KG

  • Monthly capacity
    1000000 sets

  • 50000 times
    cycle test

  • Quiet and
    smooth sliding

Product Details

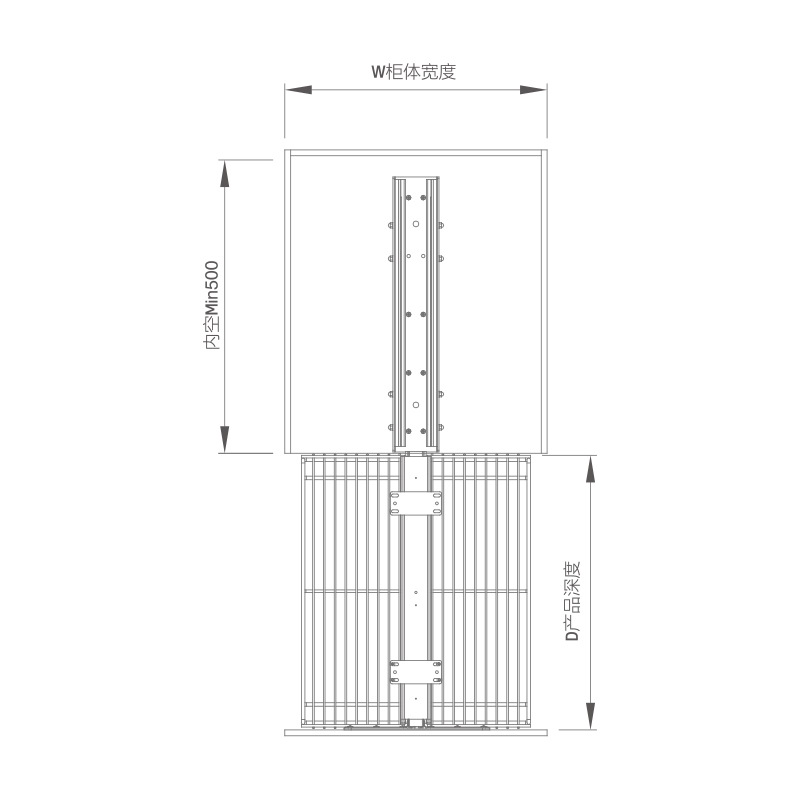

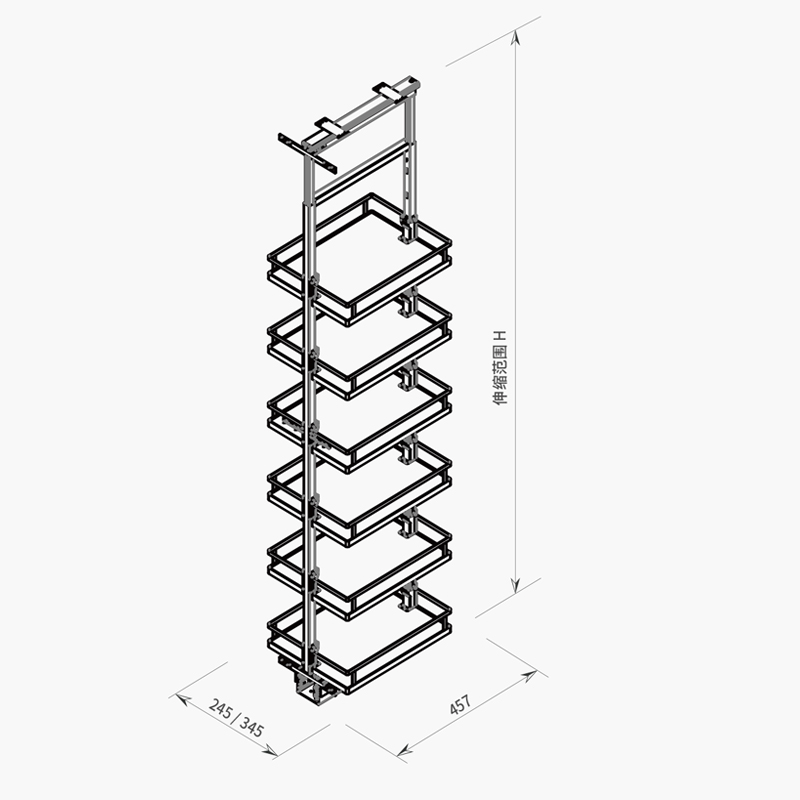

Item NO. Cabinet Width x Depth x Height H
80703D 300 (四层) 245 x 457 x 1295 1300-1600
80703E 300 (五层) 245 x 457 x 1595 1600-2000
80703F 300 (六层) 245 x 457 x 1795 1900-2300
80704D 400 (四层) 345 x 457 x 1295 1300-1600
80704E 400 (五层) 345 x 457 x 1595 1600-2000
80704F 400 (六层) 345 x 457 x 1795 1900-2300
